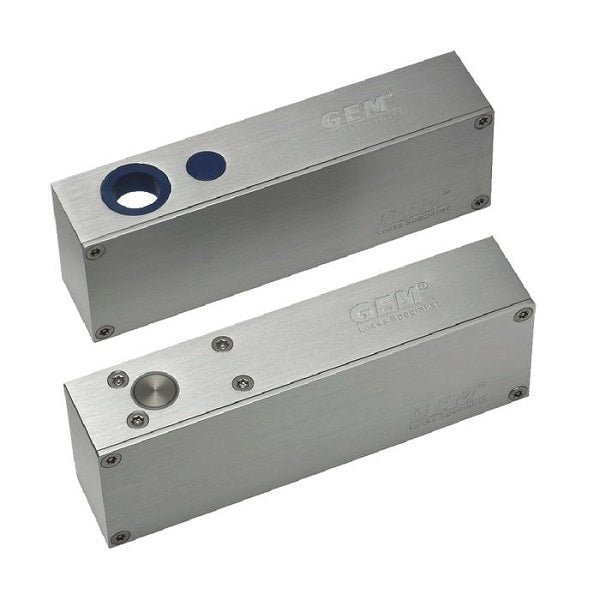

EB300 / EB300VGL Electric Dropbolt Lock

EB300 / EB300VGL Electric Dropbolt Lock

A solenoid bolt, drop bolt or dead bolt is a type of electro-mechanical locking mechanism. This type of lock is characterised using a solenoid to throw a bolt only when both the lock and door are fully aligned, preventing damage to doors. These locks can be used on single or double swing doors that require a secure, durable and high-quality lock. A solenoid bolt can be designed either to fail open (the lock opens on power loss) or to fail closed (the device is locked upon power loss).

Specification

• Operating voltage 12vDC
• Fail safe (power to lock)

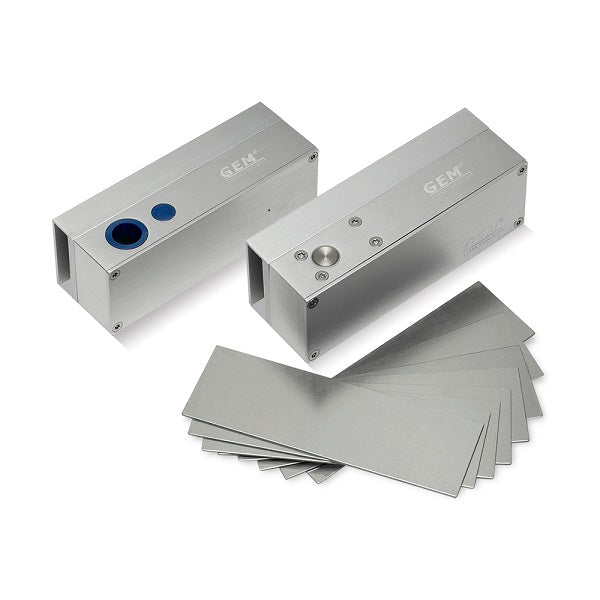

• Glass Door application (EB300VGL only)
• Auto re-locking timer delay 0, 3, 6 or 9 seconds
• 166 x 56 x 32 (H x W x D)

Product Datasheet - EB300

Product Datasheet - EB300VGL
