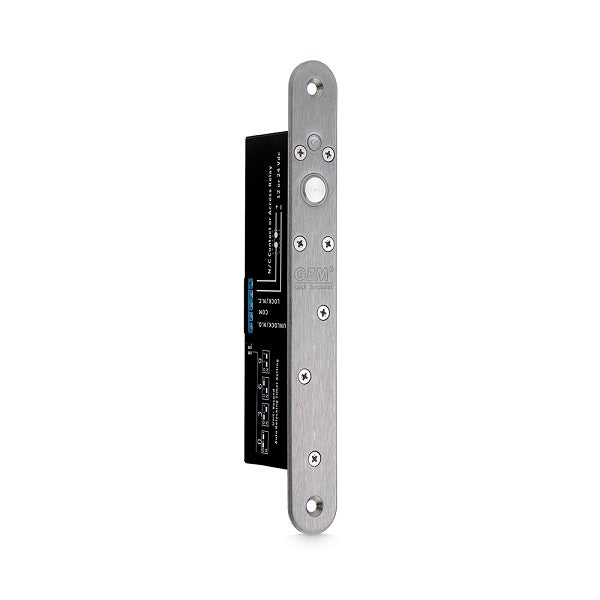

EB180 Electric Dropbolt Lock

EB180 Electric Dropbolt Lock

A solenoid bolt, drop bolt or dead bolt is a type of electro-mechanical locking mechanism. This type of lock is characterised using a solenoid to throw a bolt only when both the lock and door are fully aligned, preventing damage to doors. These locks can be used on single or double swing doors that require a secure, durable and high-quality lock. A solenoid bolt can be designed either to fail open (the lock opens on power loss) or to fail closed (the device is locked upon power loss).

Specification

• Operating voltage 12~24vDC
• Fail-safe (power to lock)
• Built in logical circuitry
• Auto re-locking timer delay 0, 3, 6 or 9 seconds
• Vandal Resistant
• Stainless steel
• Lock - 210 x 25 x 41 (H x W x D)
• Plate - 100 x 25 x 10 (H x W x D)

Product Datasheet
